born in MExplorer
Sound Revolution in TWS from Pure Graphene Diaphragm Pure Graphene Diaphragm born in MExplorer revolutionizes Sound of True Wireless Stereo(TWS).
Ideal material properties in Graphene Diaphragm of MExplorer
Pure Graphene Sound born in MExplorer

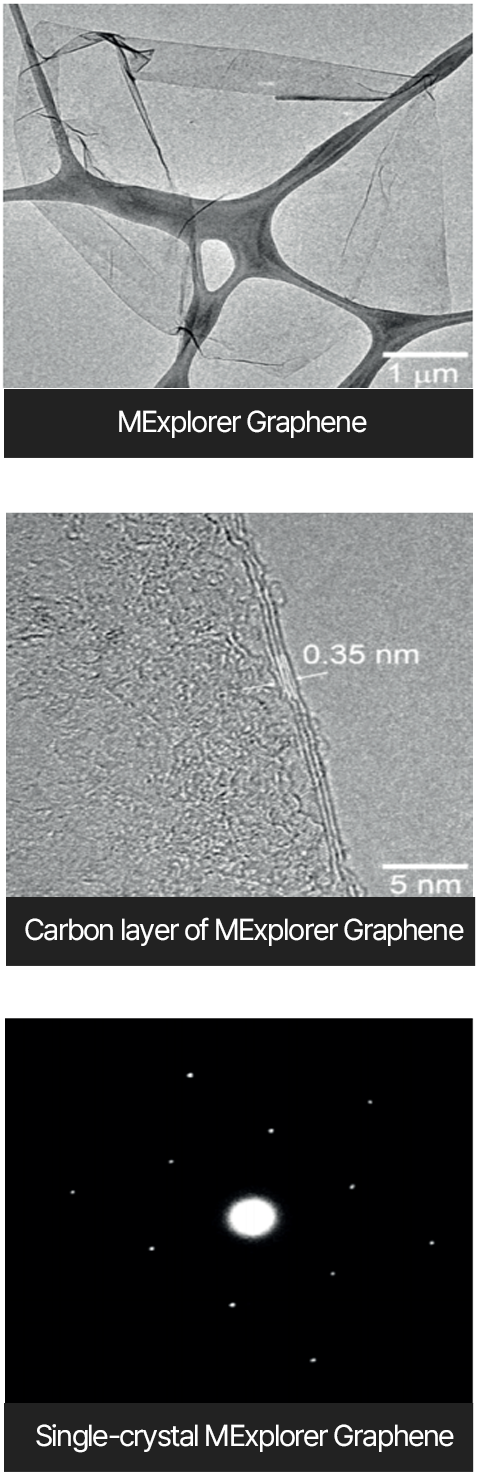

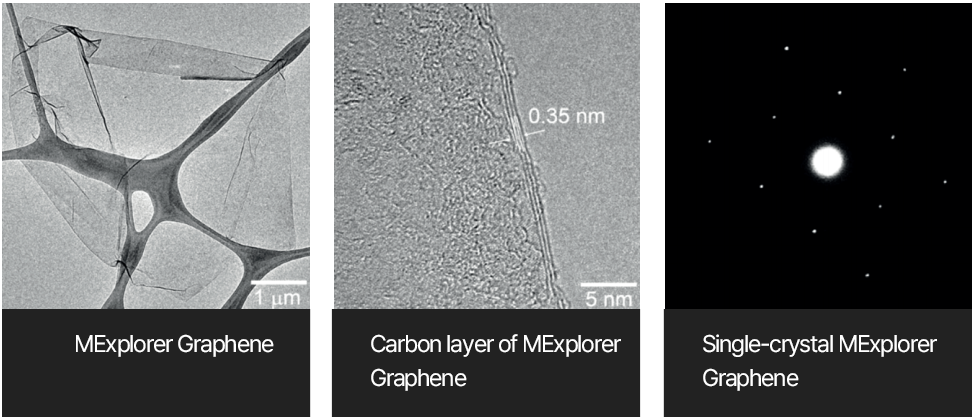

Instead of Graphene coating on the surface of plastic films, Graphene Diaphragm of MExplorer is purely structured of Single-crystal Graphene manufactured in MExplorer
Evaluation of the best sound quality from Europe evaluation institutes in 2022
Wireless earphones made with MExplorer's graphene vacuum plates have received tensile modulus and tensile modulus ratings from Europe's best sound quality evaluation institute. Excellent loss coefficient has been proven.
| Division | Specific Gravity | Young’s modulus (GPa) | Tangent loss |
|---|---|---|---|
| Ti | 3.42 | 34 | 0.005 |
| Al38Al38 | 2.28 | 87 | 0.004 |
| Mg | 1.38 | 20 | 0.003 |
| Graphene Diaphragm (MExplorer) |
1.50 - 1.55 | 15 - 20 | 0.08 - 0.1 |
| LCP | 1.45 | 1 - 2 | 0.08 - 0.09 |
| NOMEX | 0.7 | - | 0.016 |
| PEEK | 1.33 | 4.2 | 0.007 |

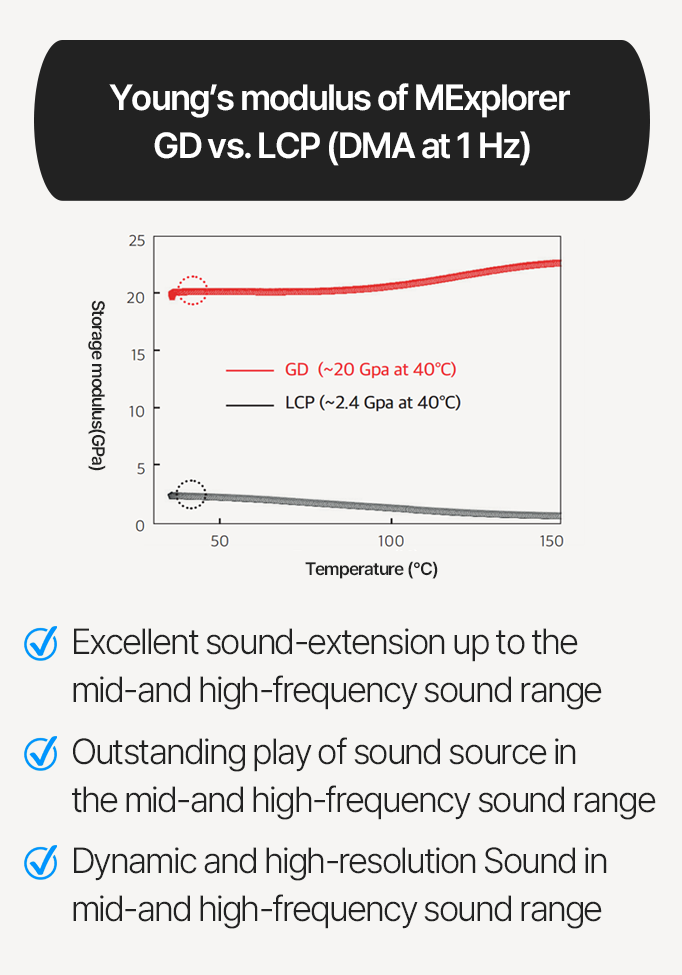

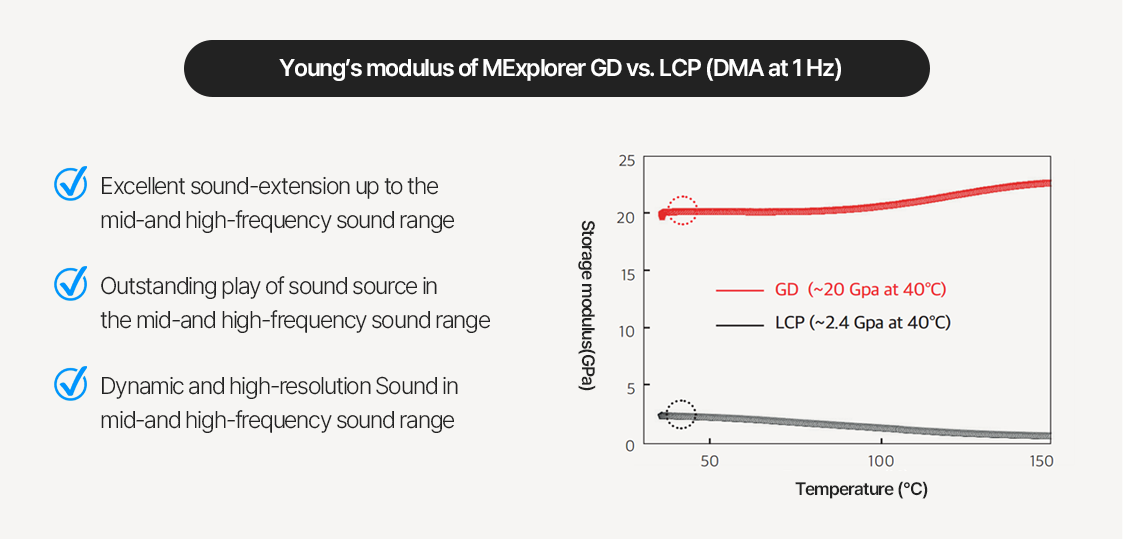

Innovative properties of the MExplorer pure graphene diaphragm delivers the highest level of sound quality among wireless earphones
Pure Graphene Diaphragm of MExplorer for the best sound quality in TWS

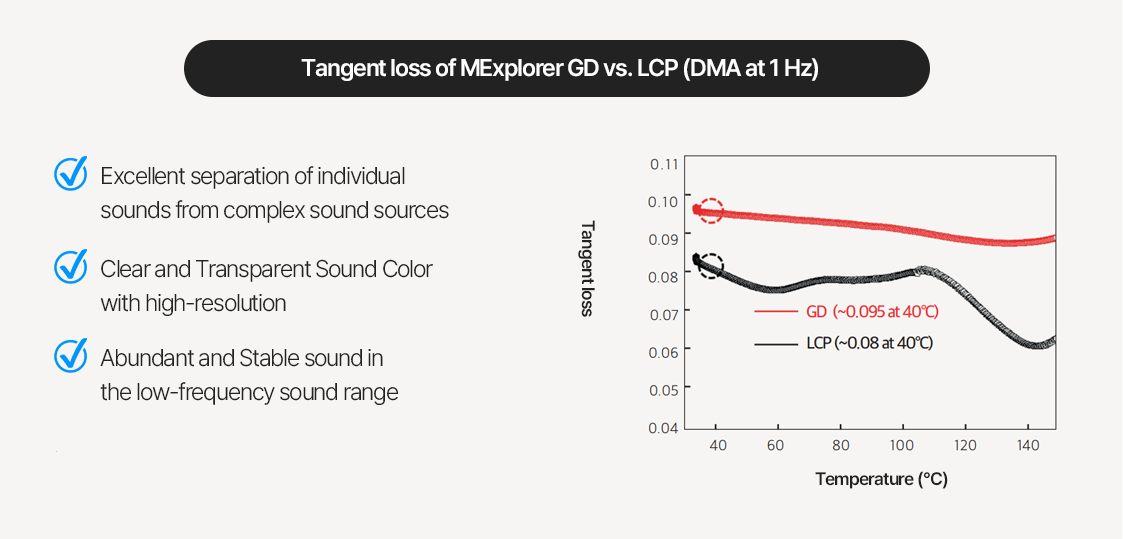

The highest Level of Tangent loss in MExplorer Graphene Diaphragm

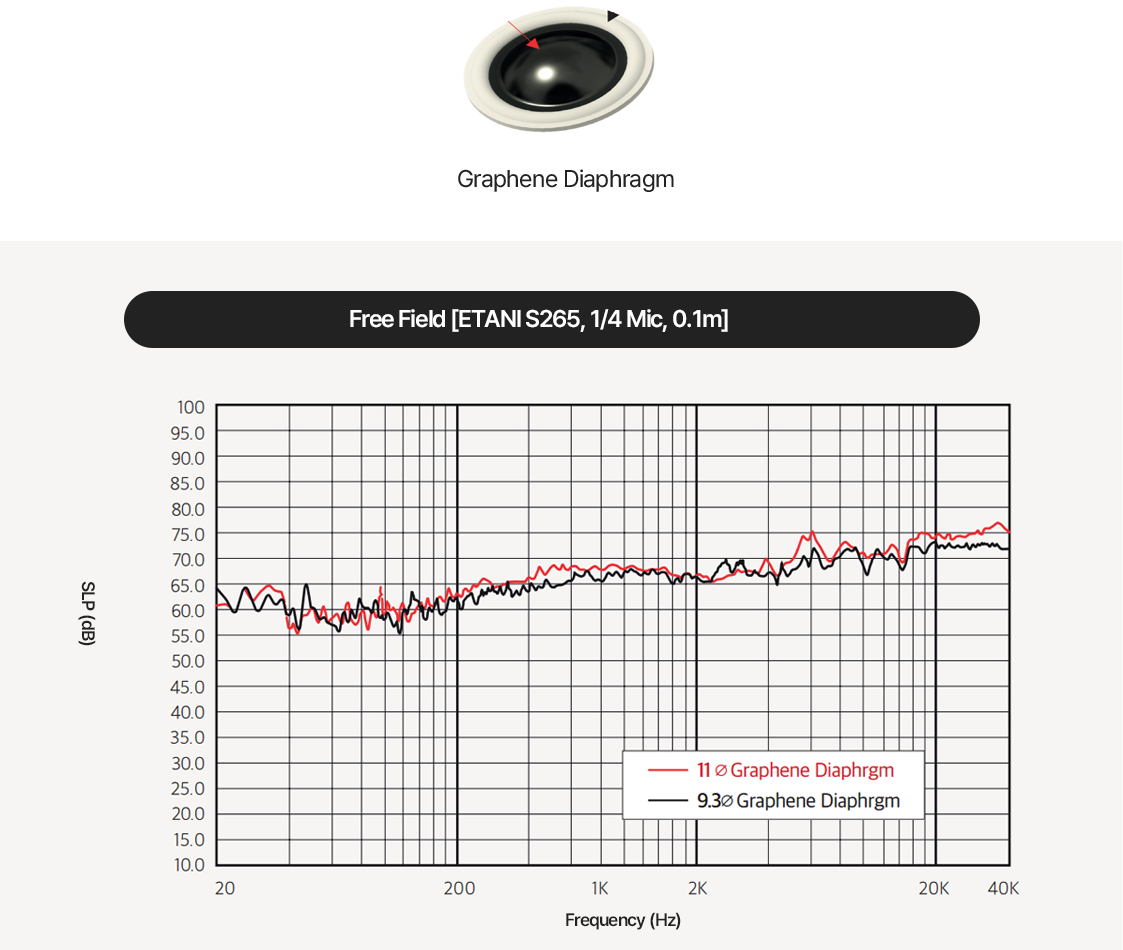

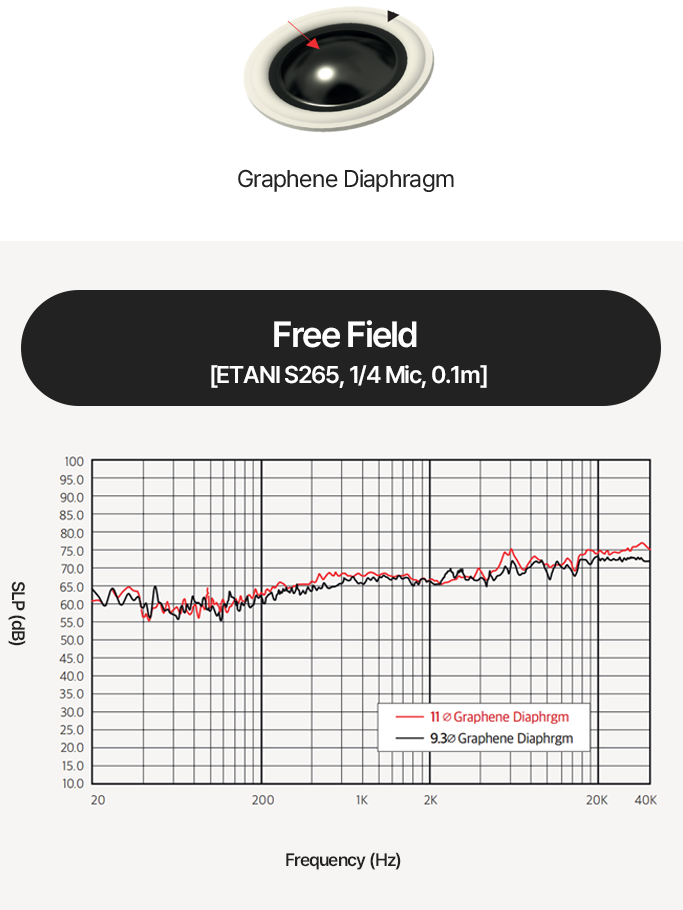

Innovative sound quality from Dynamic Driver that equipped with graphene diaphragm

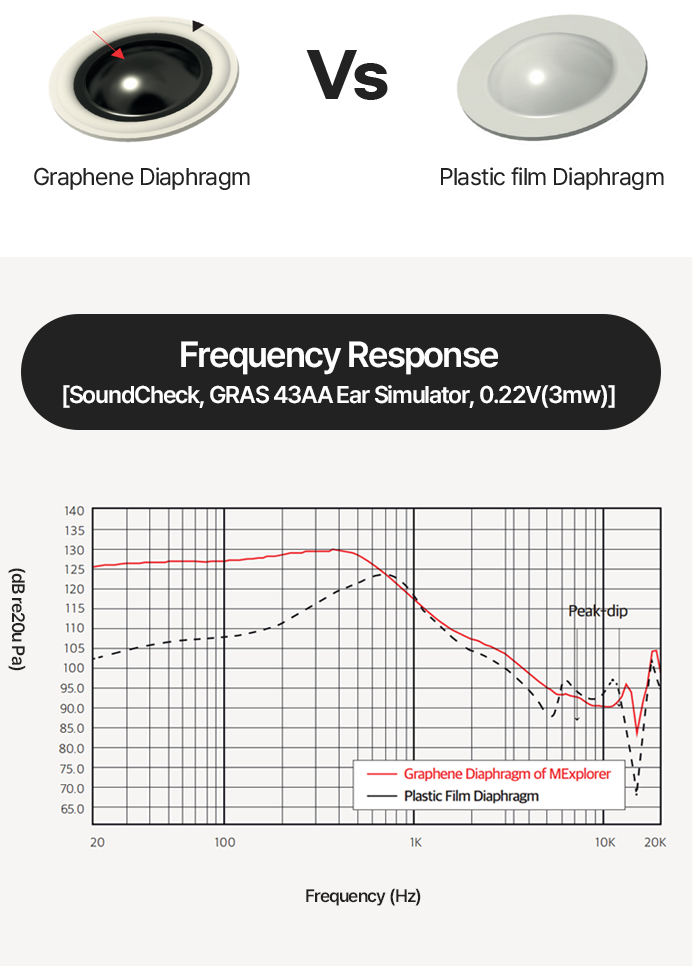

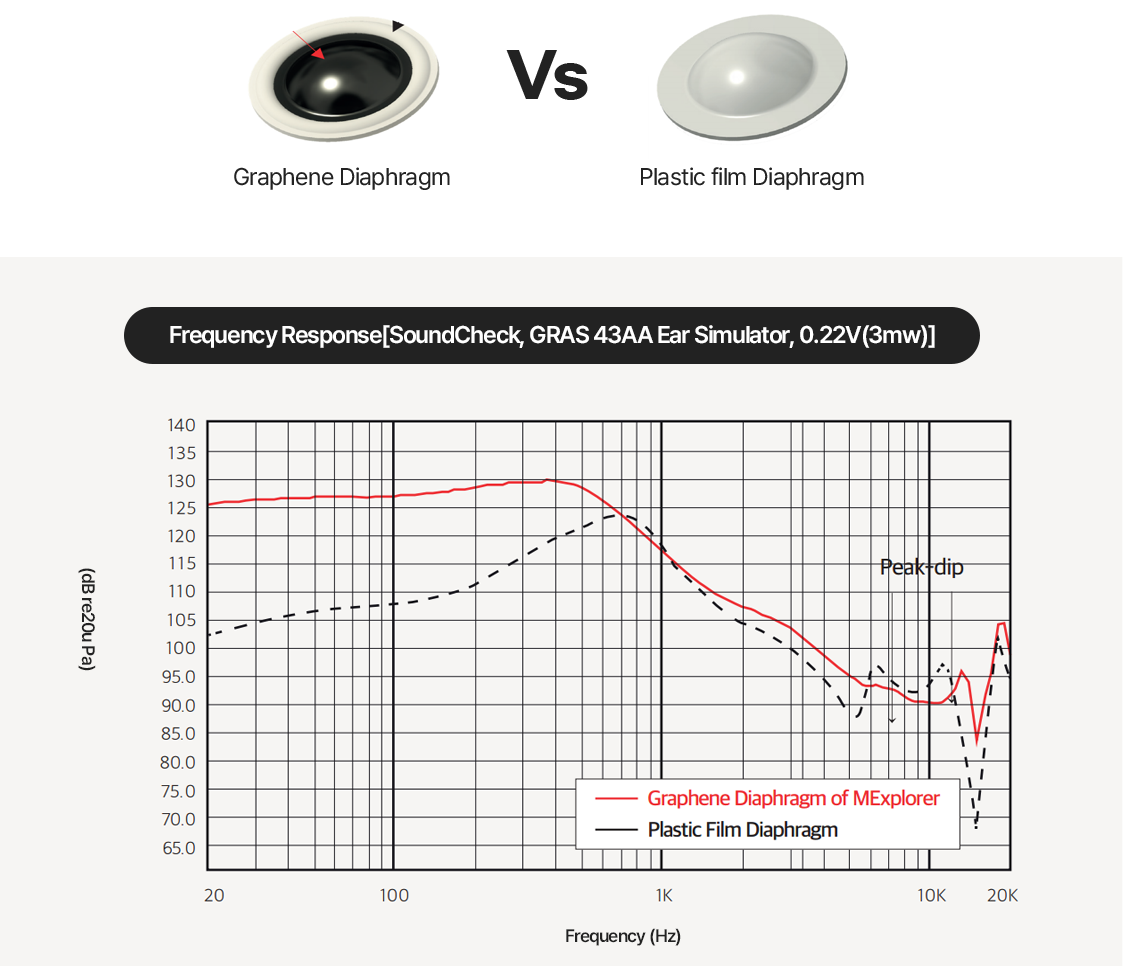

Graphene Diaphrgm Vs Plastic film Diaphragm For Frequency Response
Excellent sound separation of complex sound sources due to the highest level of loss coefficient
Check out our e-brochure for more information
